Heating blankets

Heating Blankets for curing GRE joints.

SUSTAINABLE SOLUTION

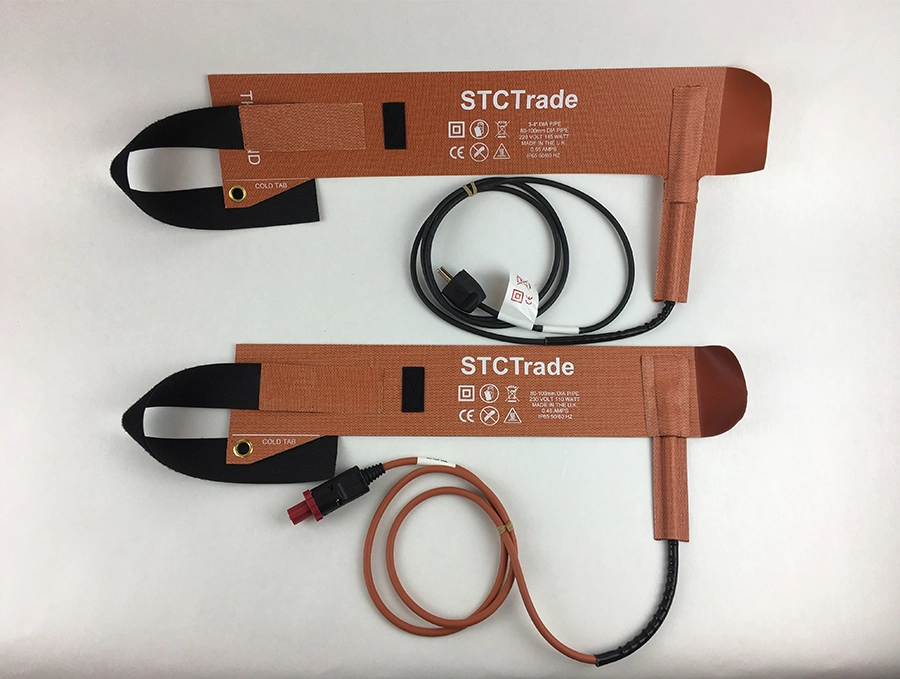

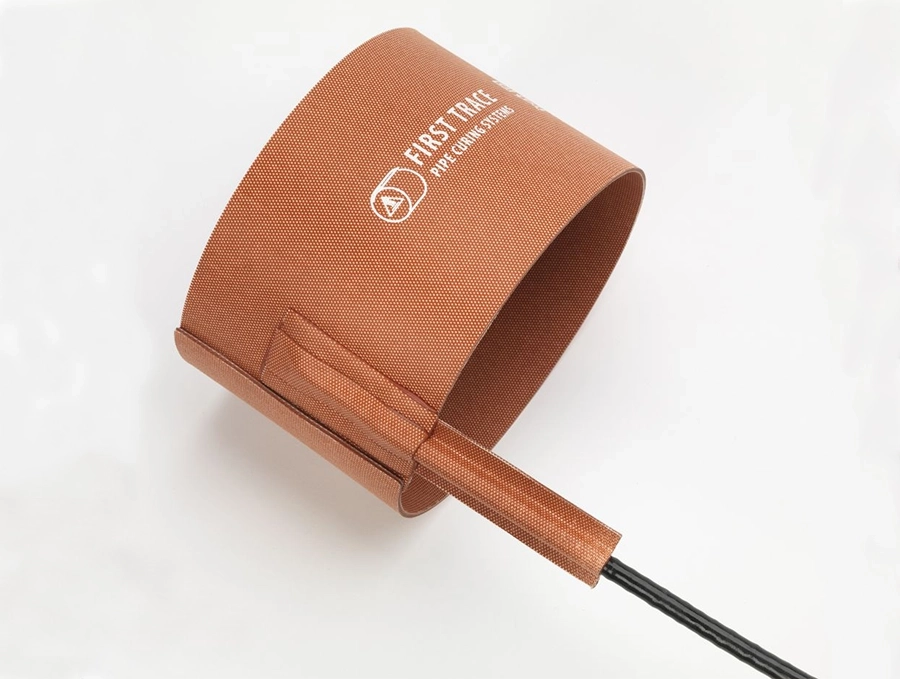

Heating blankets

Our heating blankets for curing GRE joints are provided with:

  • Strain relief to prevent cable failure
  • Cold tab and flap to prevent burning fingers
  • Velcro for easy installation
  • Eye for easy storage

The heating blankets operate standard on 230 V. We offer two types:

  • blankets with built-in controller (inbuilt limiter)
  • blankets with external controller (controller)

STC Trade’s heating blankets are available in several standard sizes and tailor-made sizes.

Download corporate brochure

Our models:

Type Inbuilt Limiter
The temperature of the heating blanket is set at a fixed value and measured by means of a thermocouple. The temperature is regulated within a few degrees Celsius.

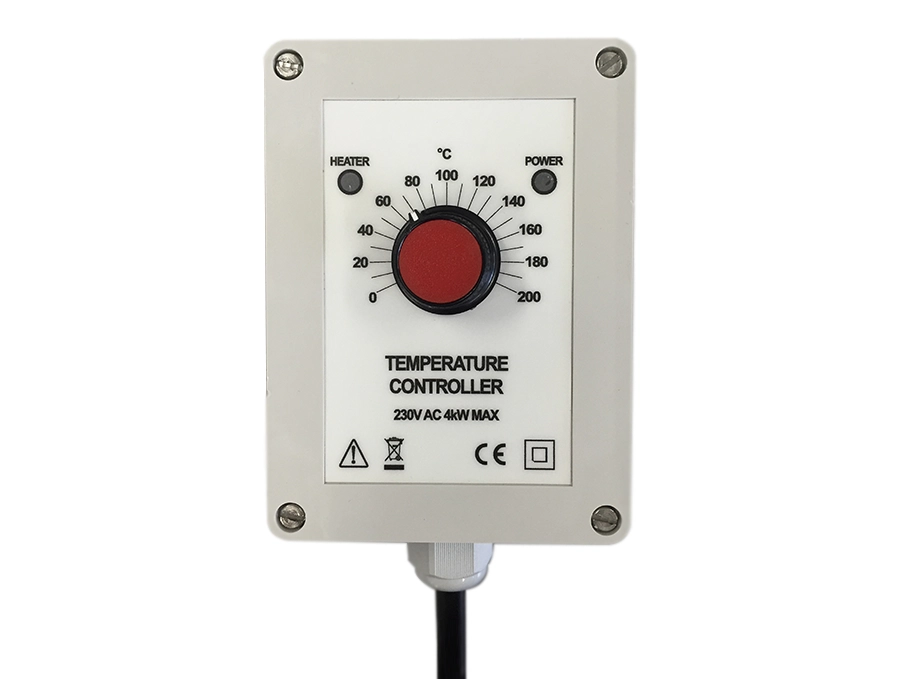

Type External Controller
The temperature of the heating blanket is measured with a built-in thermocouple. The measurement is entered in a separate controller, with which the temperature can be set and regulated. The temperature is regulated within a few degrees Celsius.

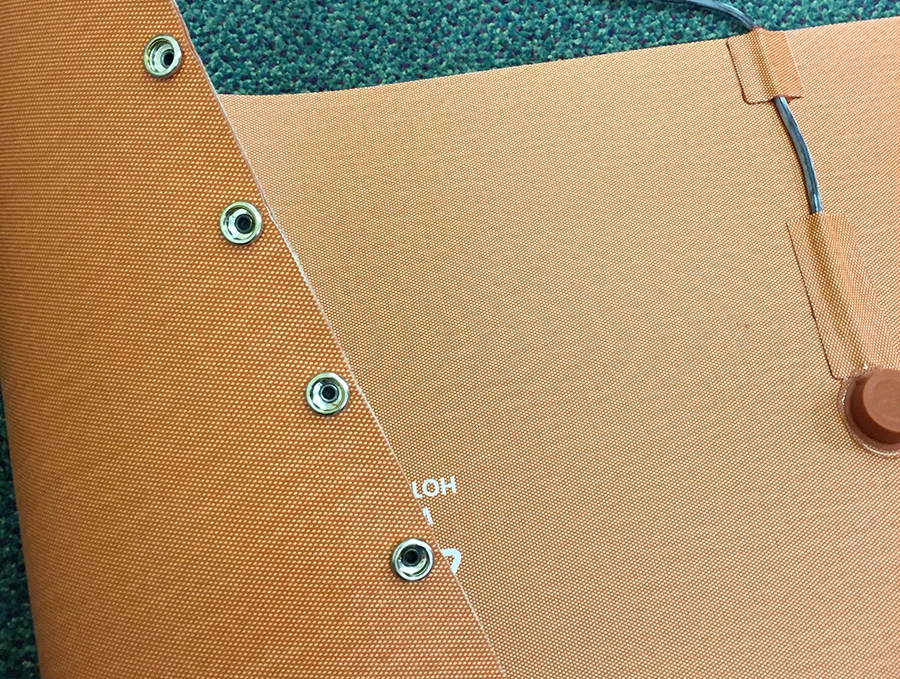

Combined blankets
The blankets can be connected to each other without overlap by means of press-studs. This makes every combination possible, so that every large diameter can be heated.

Other blankets
There are many variations possible. The blankets are used as heaters for barrels, liquids, pipes and other applications. The blankets can be supplied in any shape and (fixed or adjustable) temperature range.

Drum heaters
Drum heaters are used to reduce the viscosity of products such as oils, fats and other products. We offer various types of drum heaters for plastic drums and steel drums.

Many variations possible
The heating blankets are used as heaters for barrels, liquids, pipes and other applications. The heating blankets can be supplied in any shape and (fixed or adjustable) temperature range.

Heating blankets with inbuilt limiter:
Verwarmingsmatjes met ingebouwd thermokoppel:
Item Diameter buis (inch) Diameter buis (mm) In-/uitwendig Afmeting (mm)
Item Use for pipe size Use for pipe size In-/outside use Size (mm)
1 1-2 inch 25 – 50 mm In-/uitwendig 80 x 395
2 3-4 inch 80 -100 mm In-/uitwendig 110 x 595
3 6 – 8 inch 150 – 200 mm In-/uitwendig 140 x 950
4 10 – 12 inch 250 – 300 mm In-/uitwendig 200 x 1400
5 14 – 16 inch 350 – 400 mm In-/uitwendig 250 x 1780
6 18 – 20 inch 450 – 500mm In-/uitwendig 250 x 2180
7 24 inch 600 mm In-/uitwendig 250 x 2470
8 28 – 32 inch 700 – 800 mm In-/uitwendig 250 x 3120
9 32 – 36 inch 800 – 900 mm In-/uitwendig 250 x 3300
10 36 – 40 inch 900 – 1000 mm In-/uitwendig 250 x 3670



Heating blankets with separate controller:
Verwarmingsmatjes voor gebruik met losse regelaar:
Item Diameter buis (inch) Diameter buis (mm) In-/uitwendig Afmeting (mm)
Item Use for pipe size Use for pipe size In-/outside use Size (mm)
1 1 inch 1 inch Inwendig
2 1.5 inch 1.5 inch Inwendig
3 2 inch 2 inch Inwendig
4 3 inch 3 inch Inwendig
5 4 inch 4 inch Inwendig
6 1-2 inch 25 – 50 mm Uitwendig 100 x 300
7 3-4 inch 80 -100 mm In-/uitwendig 100 x 500
8 6 inch 150 mm In-/uitwendig 140 x 650
9 8 inch 200 mm In-/uitwendig 160 x 810
10 10 – 12 inch 250 – 300 mm In-/uitwendig 200 x 1190
11 14 – 16 inch 350 – 400 mm In-/uitwendig 300 x 1500
12 18 inch 450 mm In-/uitwendig 300 x 1700
13 20 inch 500 mm In-/uitwendig 300 x 2000
14 24 inch 600 mm In-/uitwendig 300 x 2200
15 28 inch 700 mm In-/uitwendig 300 x 2400
16 32 inch 800 mm In-/uitwendig 300 x 2750
17 36 inch 900 mm In-/uitwendig 300 x 3050
18 40 inch 1000 mm In-/uitwendig 300 x 3400
19 Controller



Connectable heating blankets with separate controllers:
Koppelbare verwarmingsmatjes met losse regelaars:
Item Diameter Combinatie Omtrek (mm)
Item Diameter Combination Circumference (mm)
1 750 mm 2 x 1200 + 1 x 350 2750
2 800 mm 2 x 1200 + 1 x 350 2750
3 900 mm 2 x 1200 + 1 x 750 3150
4 1000 mm 3 x 1200 3600
5 1100 mm 3 x 1200 + 1 x 350 3950
6 1200 mm 3 x 1200 + 1 x 750 4350
7 1300 mm 4 x 1200 4800
8 1400 mm 4 x 1200 + 1 x 350 5150
9 1500 mm 4 x 1200 + 1 x 750 5550
10 1600 mm 4 x 1200 + 1 x 750 + 1 x 350 5900
11 1700 mm 5 x 1200 6000
12 1800 mm 5 x 1200 + 1 x 350 6350
13 1900 mm 5 x 1200 + 1 x 750 6750
14 2000 mm 5 x 1200 + 1 x 750 6750
15 2400 mm 5 x 1200 + 1 x 750 + 1 x 350 7100
16 2700 mm 7 x 1200 + 1 x 750 9150
17 3000 mm 8 x 1200 + 1 x 750 10350
18 Controller

Photos
