Fiberstrain™ inlet strainers

Class approval, lightweight & no corrosion.

Sustainable solution

Fiberstrain™ inlet strainers

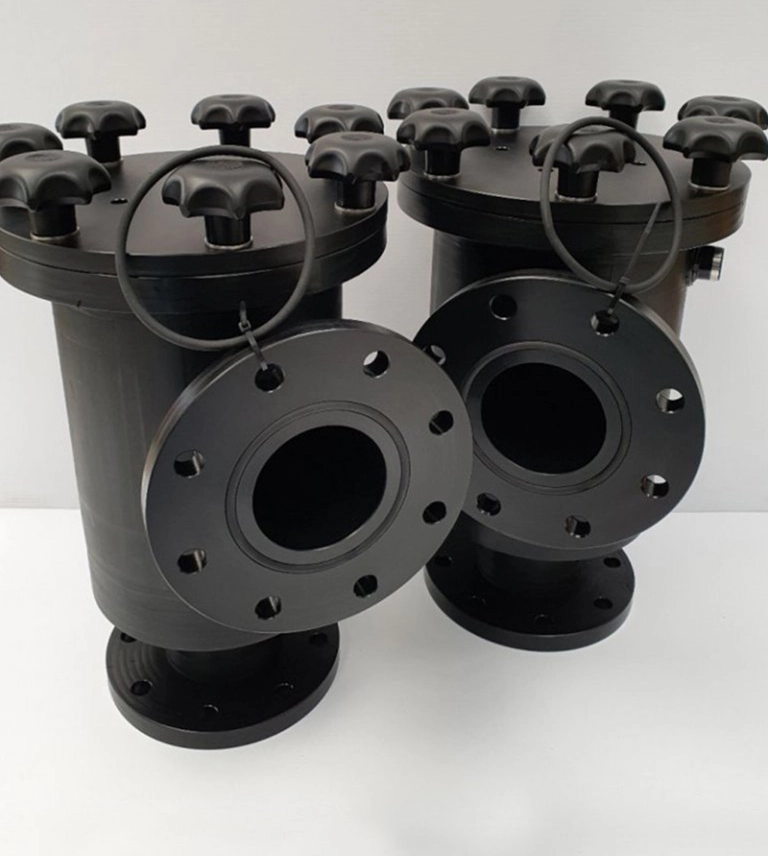

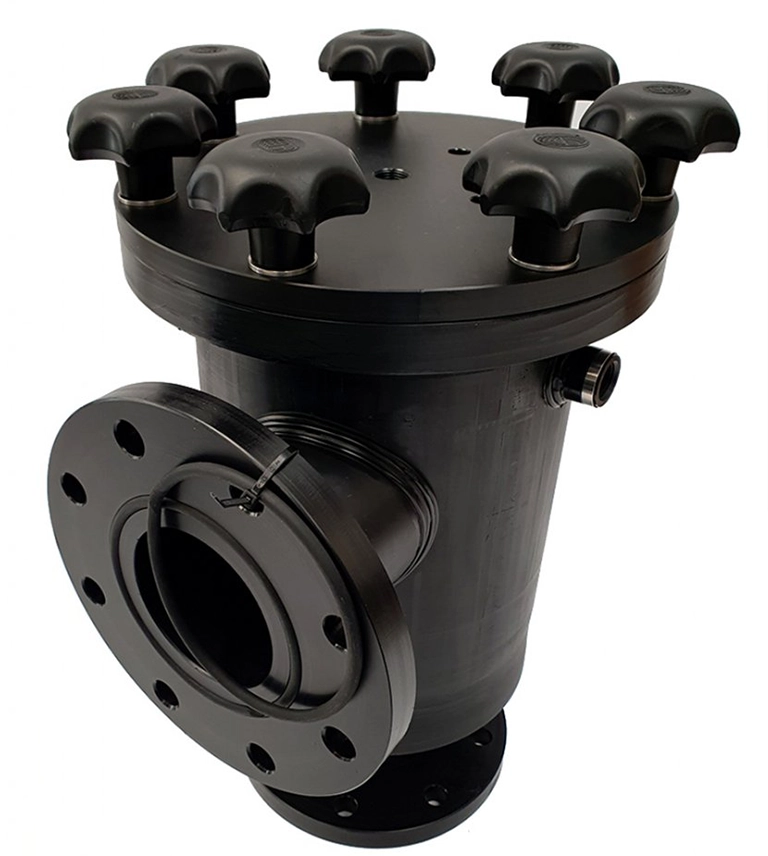

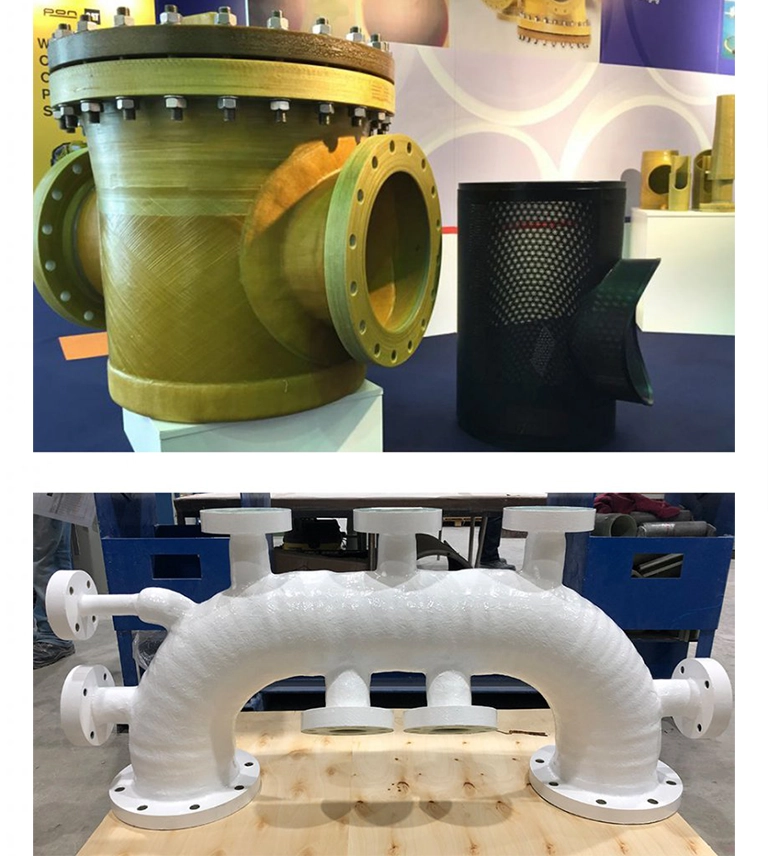

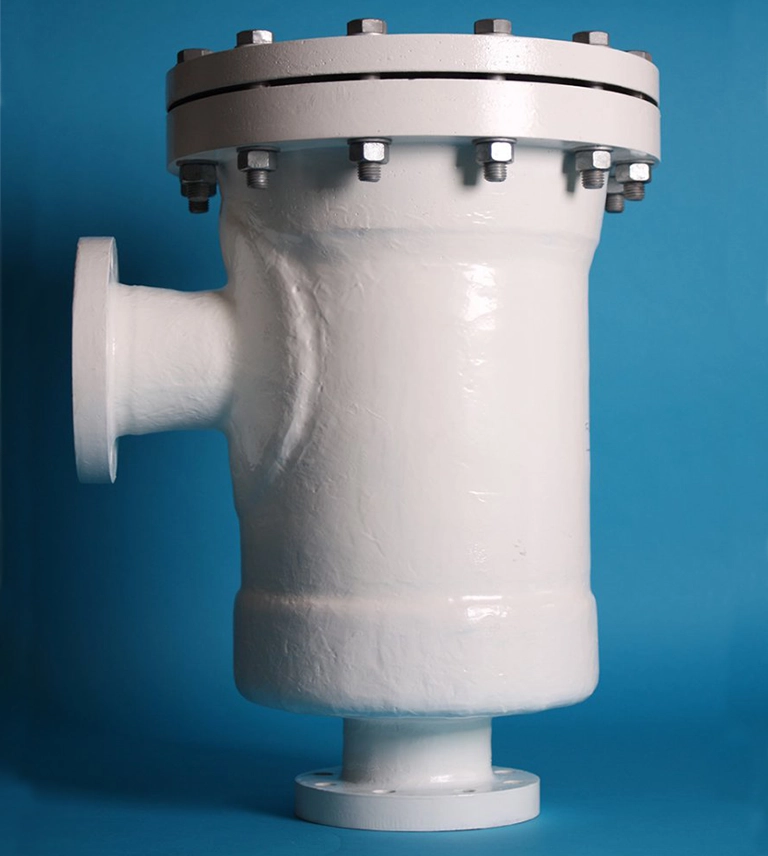

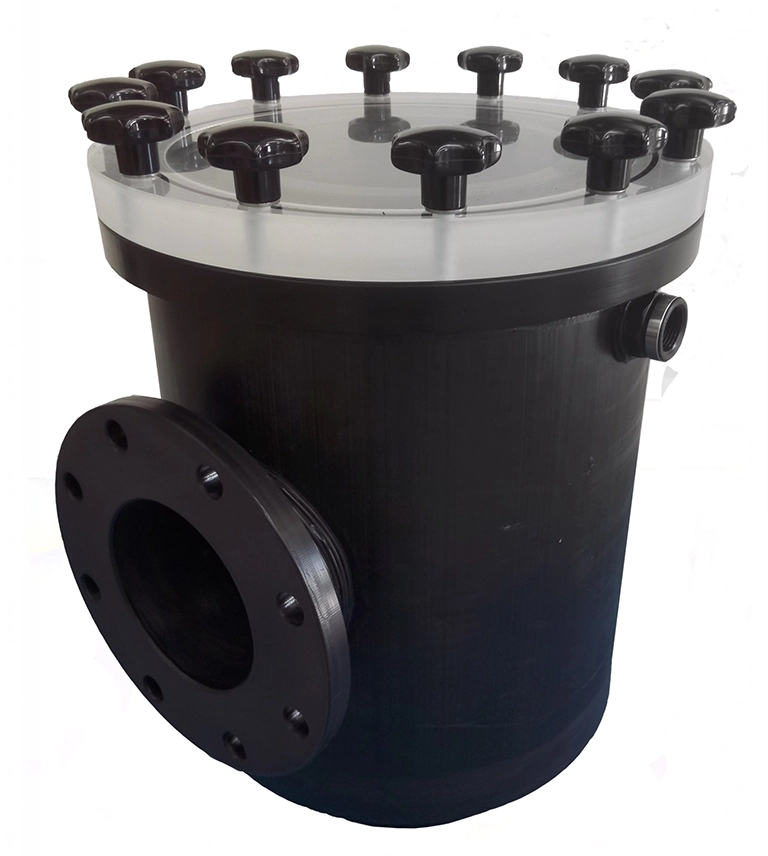

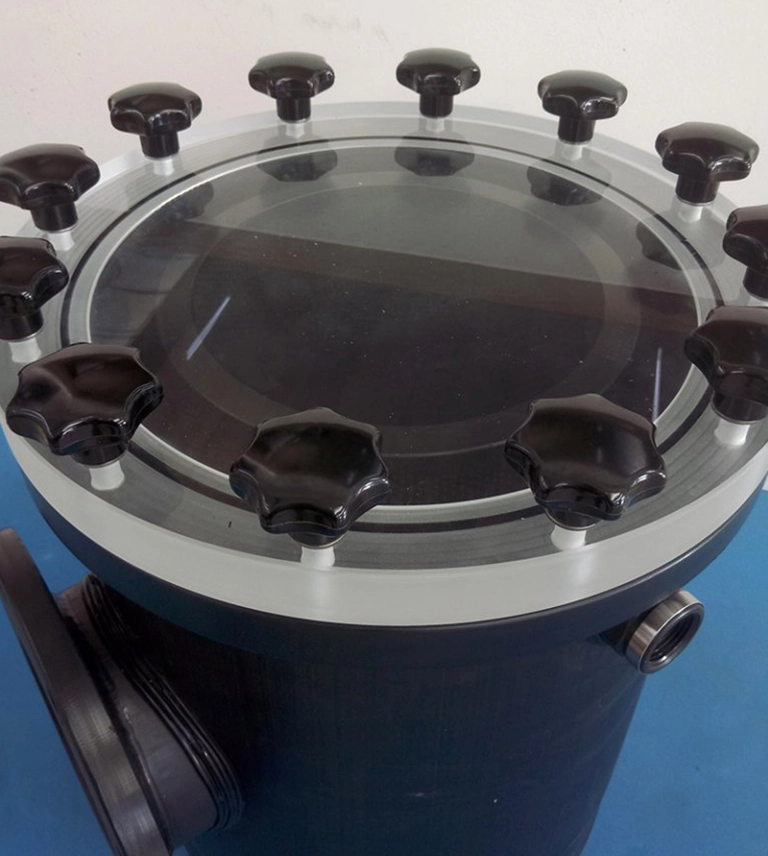

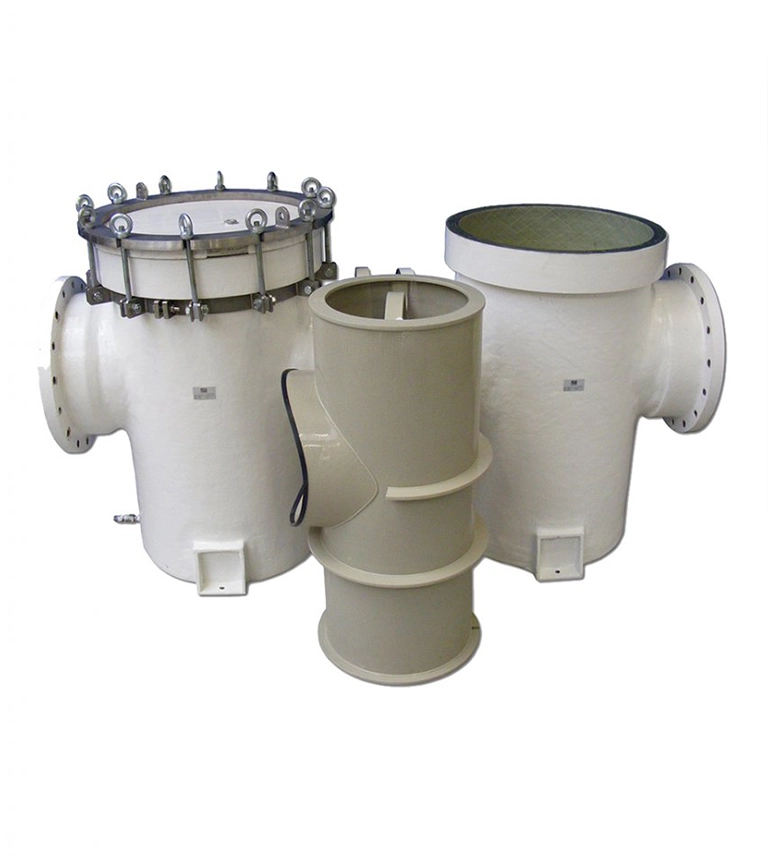

The Fiberstrain™ inlet strainers are available for fresh and seawater. For fresh water and territorial water (within 6 miles from the coast and inland shipping), STC Trade B.V. has developed special and profitable polyethylene or HDPE inlet strainers permitted by Lloyds for usage in engine rooms. The Glass Fibre Reinforced Plastic Sea Inlet Strainers are L3-certified for usage in engine rooms of seaworthy vessels. Both types have many advantages compared to metal versions. The enormous weight savings and the low cost of ownership are the most obvious benefits.

White strainer Fiberstrain

Benefits

  • Class approval
  • Light weight
  • Heavy construction
  • No corrosion and high durability
  • Less scaling
  • Less maintenance
  • Different types available
  • Standard size range or tailor-made
  • Low cost of ownership

Fiberstrain™ varieties and dimensions

Per type the dimensions are found in the tables underneath. Both HDPE and GFRP inlet strainers are available in T-type (straight) and L-type (rectangular). For tailor-made build-in dimensions: please contact us at sales@fiberstrain.nl. Special features are available such as: drains, vents, turnover bolts with stainless steel ring and eye nuts for easy assembly, light weight lids, thermoplastic filters with varying holes and pitches.

Table Polyethylene strainers / Tabel Polyethyleen strainers

Strainers type T (measurements for type L also available)

MAIN DIMENSIONS (MM) APPROX. WEIGHT (KG)
DN A D H H1
150 260 315 660 450 10
200 300 355 660 450 12
250 300 400 660 450 14
300 350 450 700 450 16
350 350 500 720 450 18
400 400 600 750 450 20

Table Glass Fibre Reinforced Plastic strainers

Strainer type T (measurements for type L also available) / Strainers T-type.

MAIN DIMENSIONS (MM) APPROX. WEIGHT (KG)
DN A D H H1 ØK NB D
400 500 613 1100 630 516 16 M24 130
500 550 715 1100 630 620 20 M24 150
600 600 816 1200 630 725 20 M27 170
700 650 918 1200 630 840 24 M27 200
800 700 1021 1300 630 950 24 M30 250
900 750 1224 1400 700 1050 28 M30 300
1000 800 1224 1500 750 1160 28 M33 350
